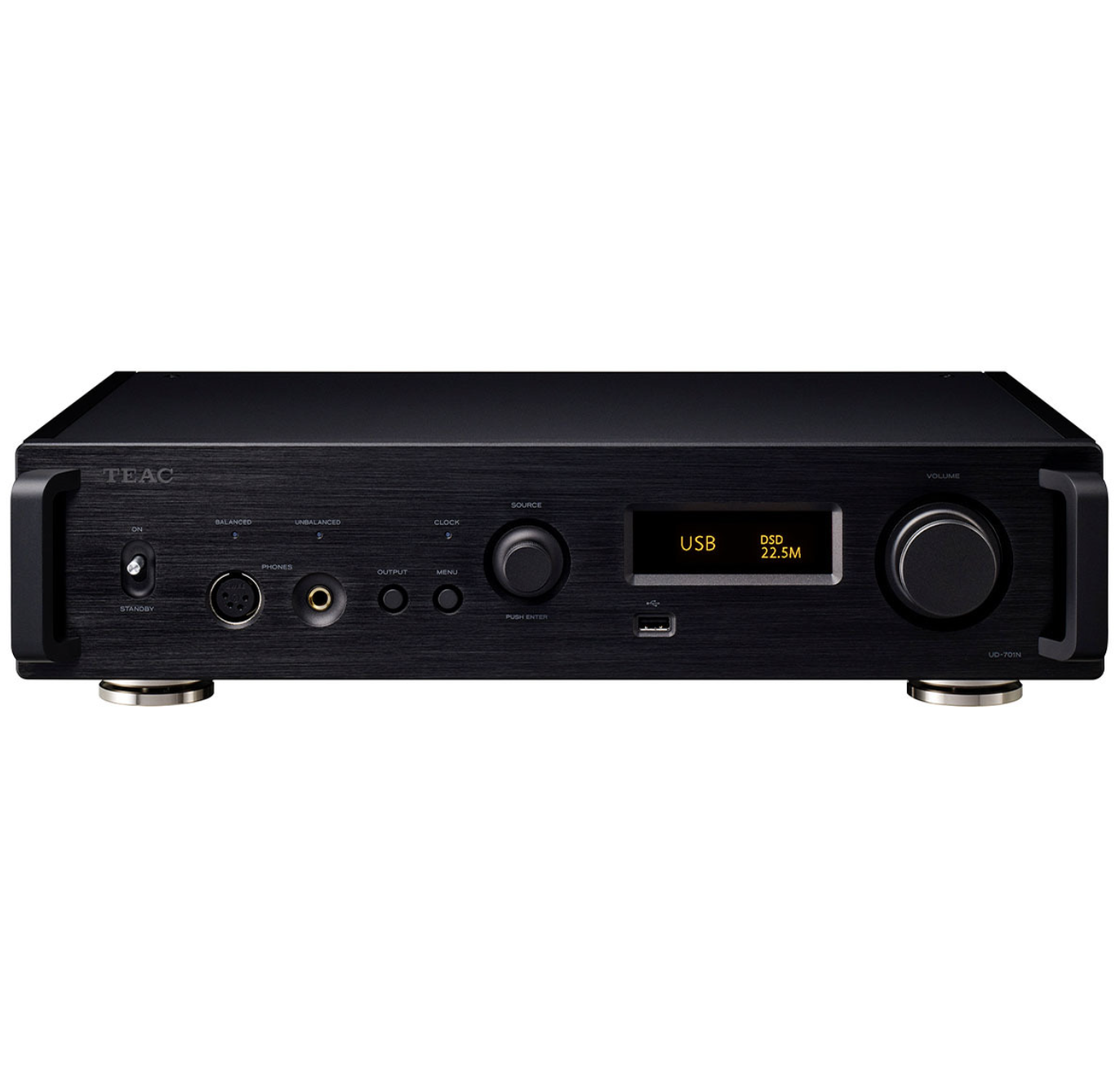

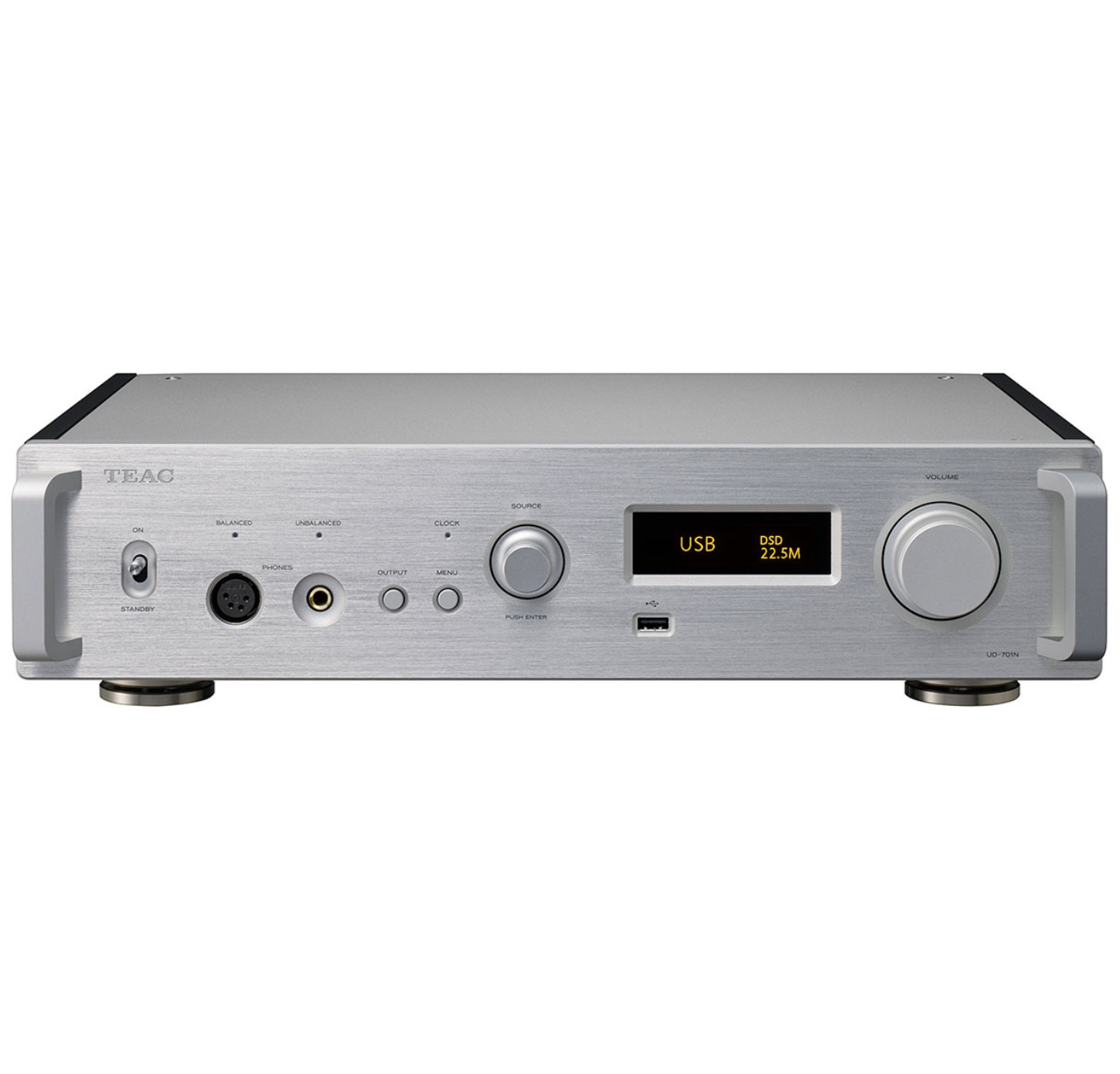

Teac UD-701N USB DAC / Network Player

Teac UD-701N USB DAC / Network Player

The Teac UD-701N is a USB DAC and network player with an integrated analogue preamplifier function and headphone amplifier.

The converter is a discrete TEAC ΔΣ (Delta Sigma) DAC that uses an FPGA with proprietary algorithms. DSD signals are passed through unchanged, while PCM signals run through a ΔΣ modulator and are converted into 1-bit signals. Playback of DSD up to 22.5 MHz and PCM up to 384 kHz/32-bit is supported.

Design

• Dual-mono structure: separate circuits for the left and right channels, from the power supply through the D/A conversion to the analogue output stage
• Four toroidal transformers: two for the separate left/right analogue signals, plus one each for the network module and the digital control section
• Fully balanced transmission of the output signal after D/A conversion
• TEAC-HCLD2 output buffer circuits with diamond buffer amplifiers, differential for the balanced output and parallel for the unbalanced output
• Floating structure to isolate the transformers from the base plate; TEAC original pinpoint feet

Preamplifier and volume control

In addition to its function as a USB DAC and network player, the UD-701N works as an analogue preamplifier with analogue inputs via RCA and XLR. The TEAC-QVCS (Quad Volume Control System) controls volume with four independent circuits (L+, L−, R+, R−) in 0.5 dB steps.

Headphone amplifier

The dedicated headphone amplifier uses four diamond buffers (left, right, positive, negative) and can be switched between balanced operation and active ground. Headphones up to 600 Ω are supported.

Formats and network

• MQA full decoder, also for digital inputs; MQA CDs can be played back via the digital output of a CD player
• Upconversion using RDOT-NEO to 2×, 4× or 8× sampling frequency (max. 384 kHz)
• Bluetooth with support for LDAC, LHDC, aptX HD, aptX, AAC and SBC
• OpenHome and Roon Ready (Roon Ready added via firmware update after product release)
• Streaming services: Spotify Connect, Tidal, Qobuz and TuneIn
• Bulk-Pet USB transfer with four selectable transfer modes

Software

Available free of charge are the TEAC HR Audio Player for Windows and Mac (playback up to 22.5 MHz DSD and 384 kHz/32-bit PCM) and the TEAC HR Streamer for iOS and Android for network control.

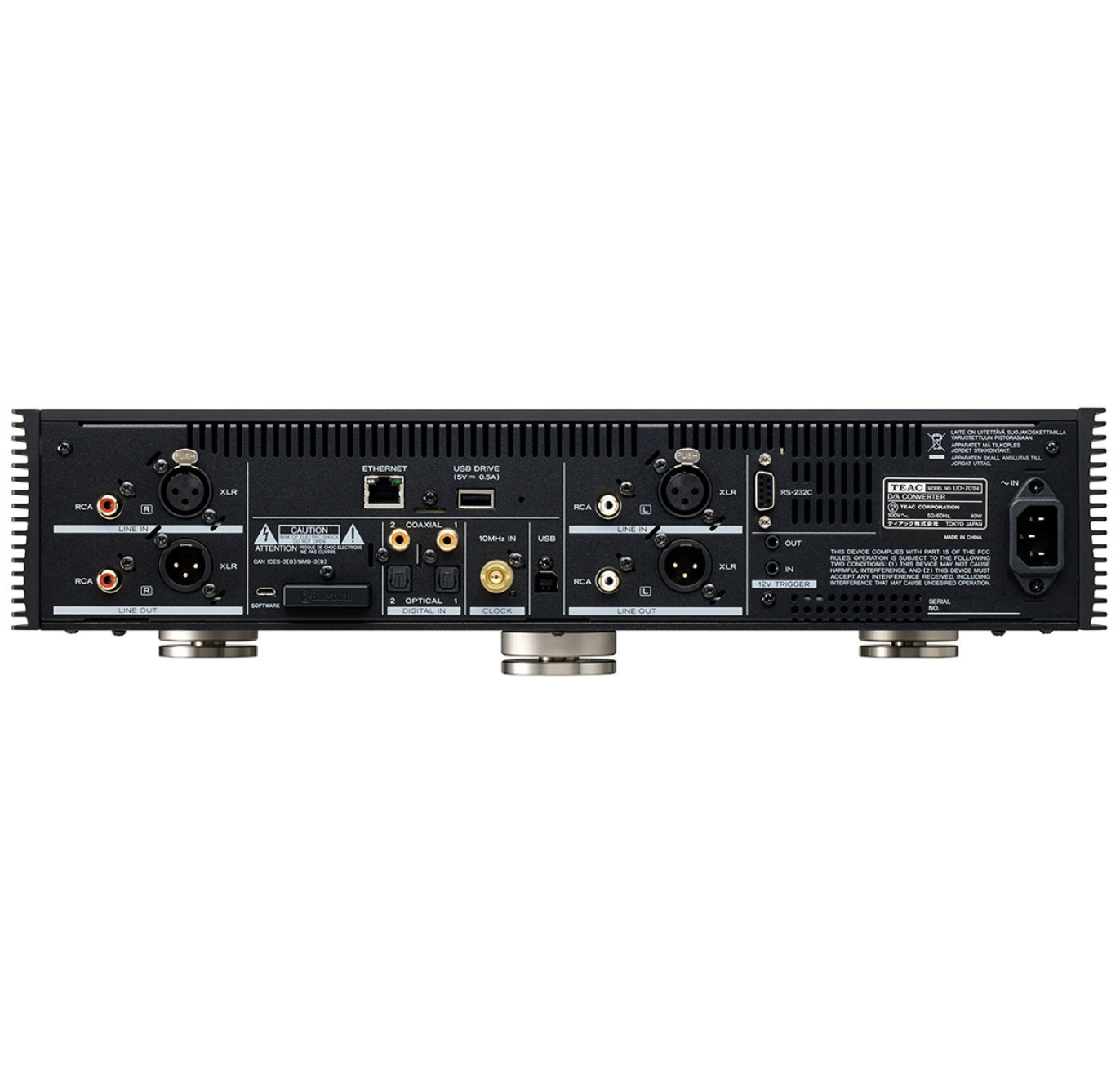

Connections

• Digital inputs: 2× coaxial, 2× optical/Toslink, 1× BNC
• Analogue inputs: 1× RCA, 1× XLR
• Analogue outputs: 1× RCA, 1× XLR
• Headphone outputs: 1× 6.3 mm jack, 1× XLR (4-pin)
• USB 2.0: 2× (incl. 1× USB-B)
• Ethernet: 1×
• 12-volt trigger: in and out
• Bluetooth 4.2

Technical data

• THD: 0.002%
• Signal-to-noise ratio: 108 dB
• Frequency response: 5–80,000 Hz
• Headphone output 6.3 mm: 500 mW + 500 mW (32 Ω, 16–600 Ω)
• Headphone output XLR: 700 mW + 700 mW (32 Ω, 16–600 Ω)
• Power consumption: 0.4–40 W
• Dimensions (H × W × D): 11.1 × 44.4 × 33.4 cm
• Weight: 11.8 kg

Included accessories

• Power cable
• Remote control
• 3× AAA batteries
• Manual
