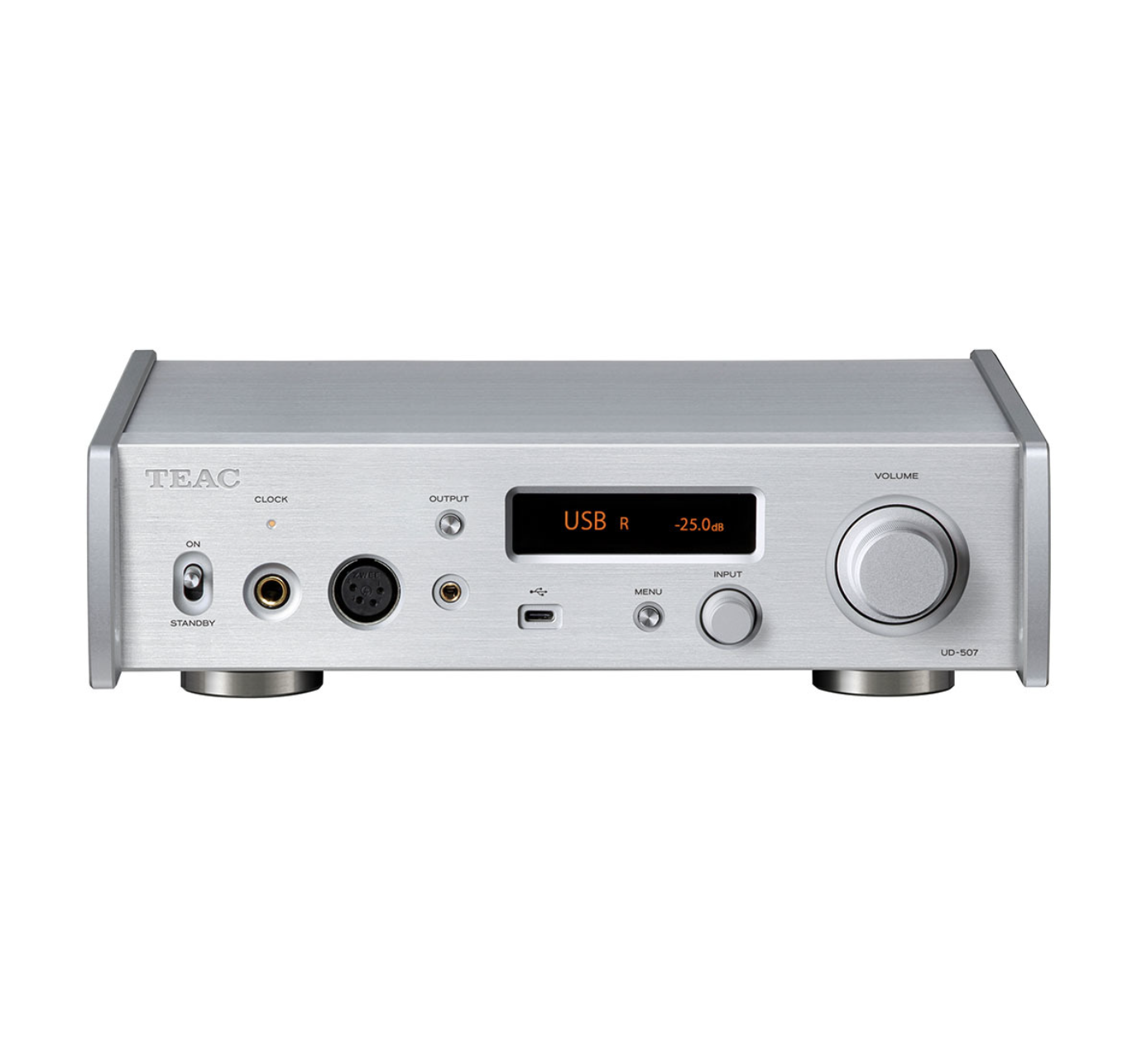

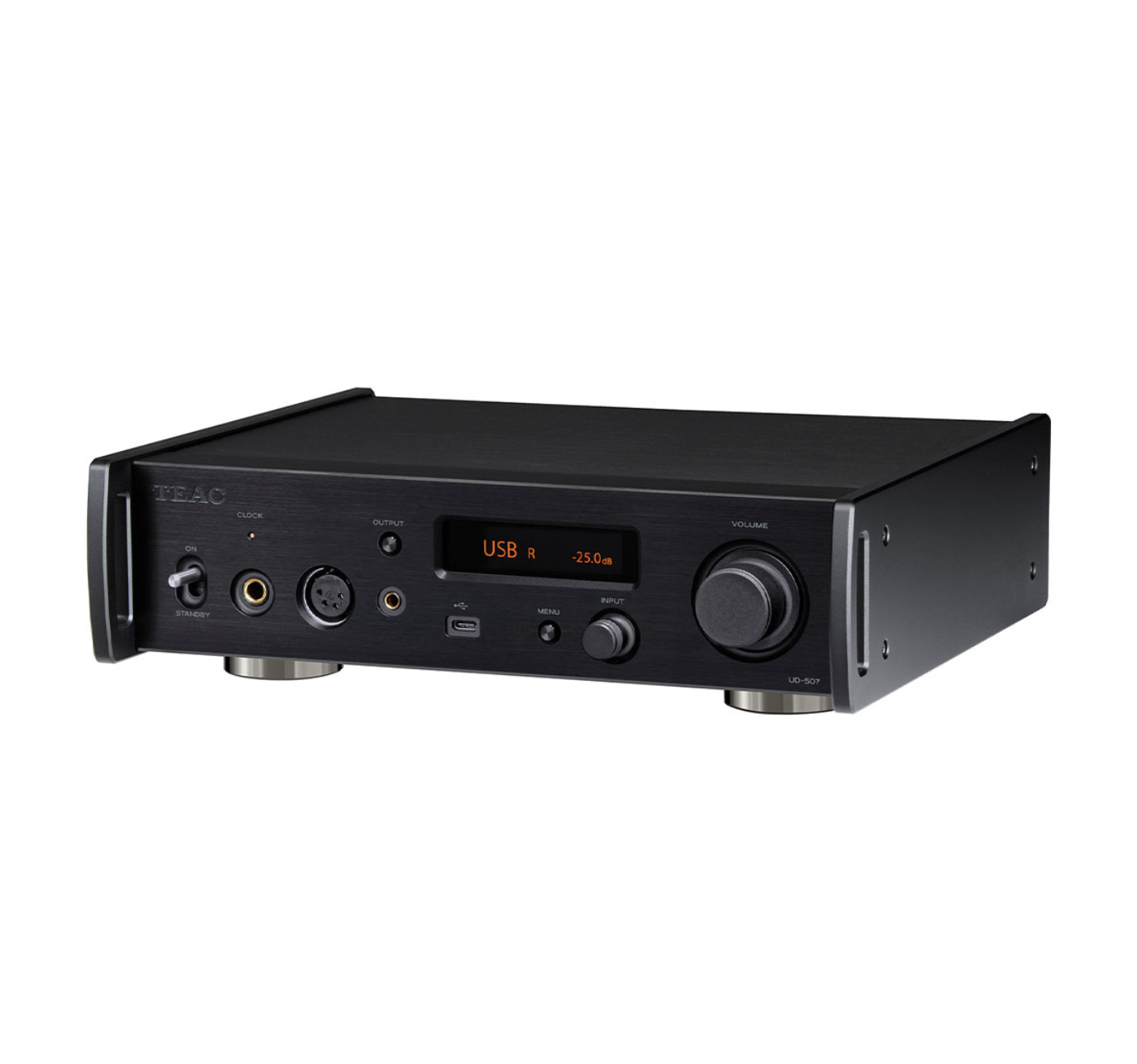

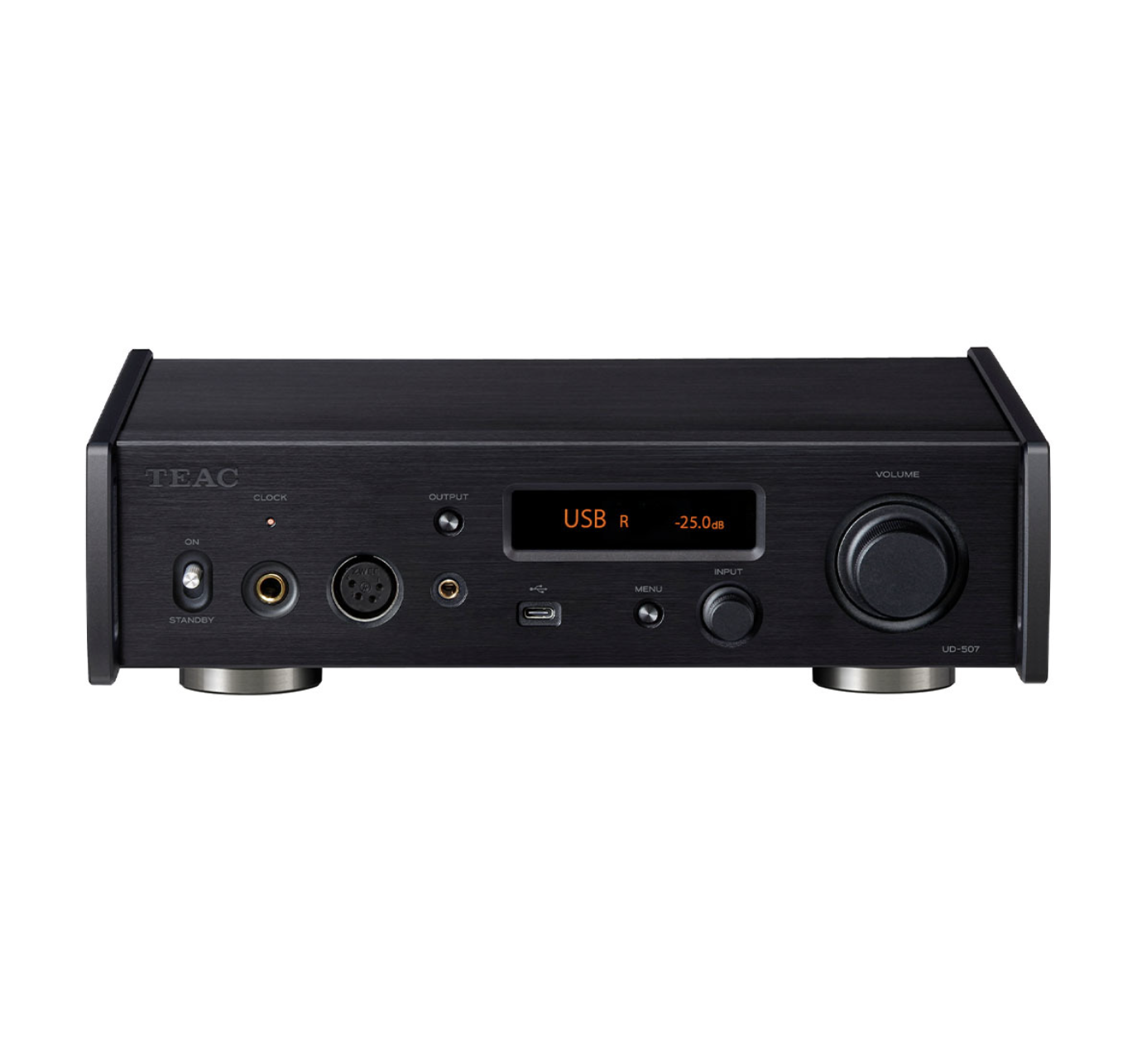

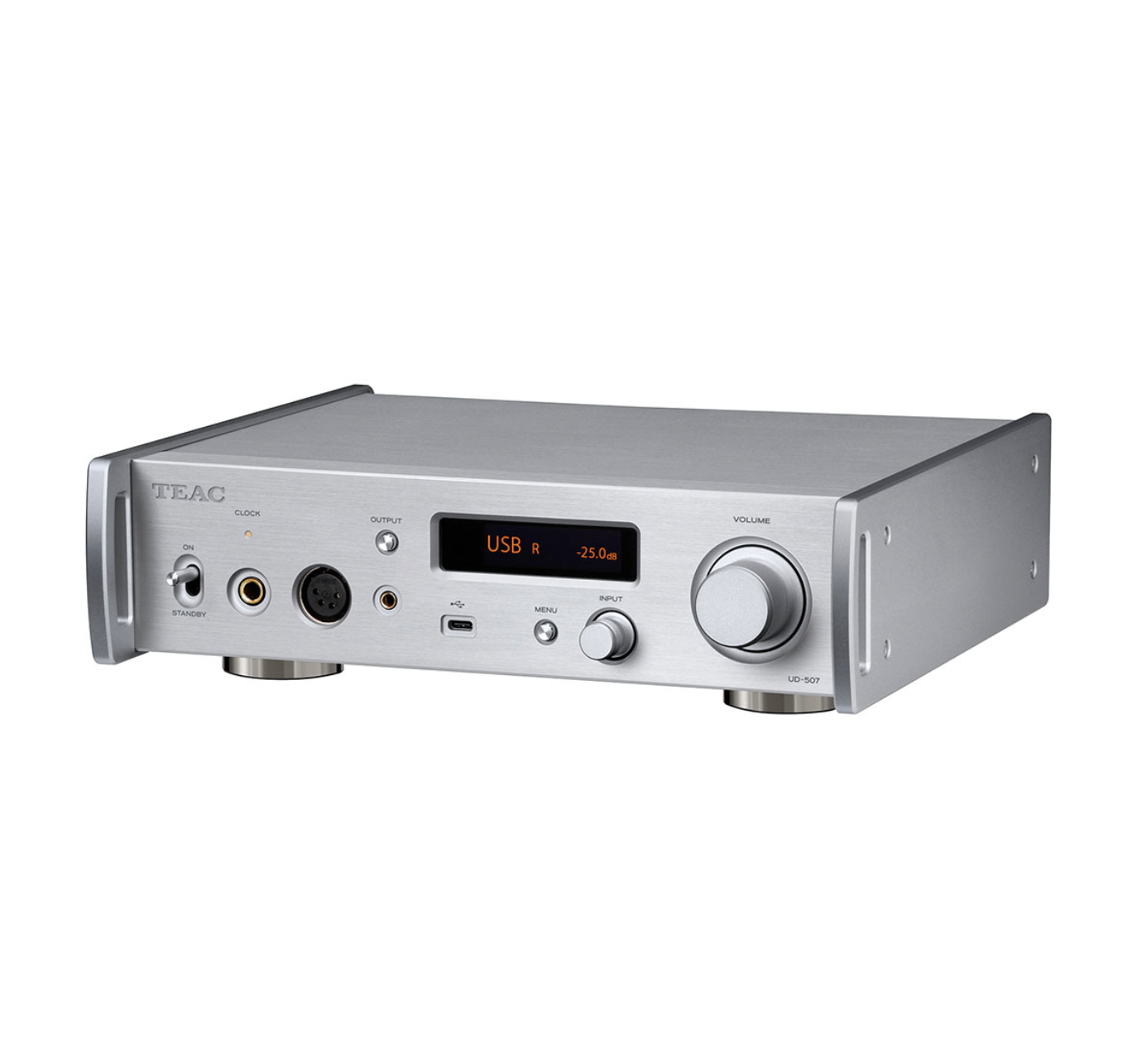

Teac UD-507 USB DAC/Preamplifier/Headphone Amplifier

Teac UD-507 USB DAC/Preamplifier/Headphone Amplifier

The Teac UD-507 combines a USB DAC, an analog preamplifier and a headphone amplifier in a single unit. It handles DSD up to 22.5 MHz and PCM up to 384 kHz/32 bit and includes an MQA Full Decoder.

D/A Conversion

The proprietary TEAC Reference Discrete DAC (TRDD 5) processes incoming digital signals at 64 bit/512 Fs via a delta-sigma modulator in the FPGA and converts them to analog through 16 elements per channel. DSD signals are processed directly, while PCM signals are first converted to a 1-bit signal. Two operating modes can be selected: multi-bit delta-sigma method or 1-bit delta-sigma method.

Clock and USB Transfer

• Internal clocks for the 44.1 kHz and 48 kHz series with low-phase-noise crystal oscillators
• External 10 MHz clock input (BNC)
• USB Asynchronous Transfer Method to synchronize with the internal crystal oscillator
• Bulk Pet USB transfer technology with four preset transfer modes

Construction

• Dual-mono design with separate L/R channels throughout the analog output section
• Fully balanced signal transmission from the D/A converter to the output stage
• Two toroidal core transformers, one each for the analog and digital boards
• Feedback-free circuit in the analog power supply section
• Floating-mounted transformer, Stressless Feet v2 and a 2.8 mm thick top plate for vibration control

Preamplifier and Inputs

• Analog volume control via TEAC-QVCS (Quad Volume Control System) in 0.5 dB steps
• TEAC-HCLD2 enhanced-current output buffer circuits
• 2 digital inputs coaxial and optical, 2 line inputs (RCA and XLR)

Headphone Amplifier

The dedicated headphone amplifier uses four diamond buffer circuits and allows connection of balanced headphones. It supports headphones up to 600 ohms. Switchable between balanced and active-ground operation. Outputs: 4.4 mm Pentaconn jack, 6.3 mm jack and 4-pin XLR.

Further Functions

• MQA Full Decoder, also for digital inputs (e.g. MQA CD via CD player)
• Up-sampling via RDOT-NEO by 2x, 4x or 8x, up to a maximum of 384 kHz
• Bluetooth receiver (version 4.2) with LDAC, LHDC, aptX HD, aptX, AAC and SBC, plus multipoint connection
• Teac HR Audio Player for Windows and Mac (free of charge)

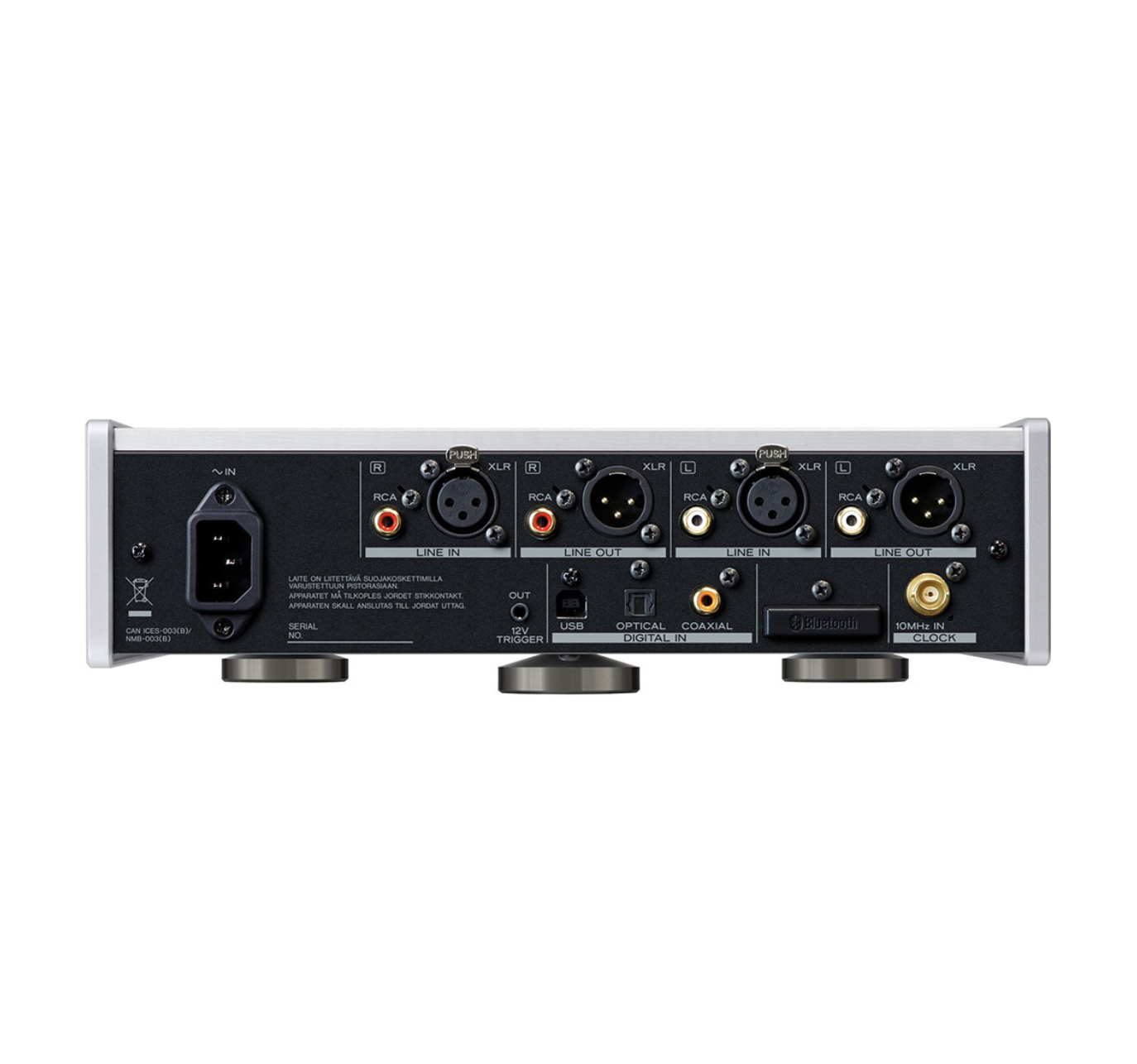

Connections and Outputs

• Digital inputs: coaxial, optical/Toslink, BNC (10 MHz), USB-B, USB-C
• Analog inputs: RCA, XLR
• Analog outputs: RCA (max. 2 Vrms), XLR (max. 2 Vrms at 0 dB, 4 Vrms at +6 dB)
• Headphone outputs: 4.4 mm (Active Ground 900 mW + 900 mW into 32 Ω, balanced 1200 mW + 1200 mW into 100 Ω, unbalanced 900 mW + 900 mW into 32 Ω), 6.3 mm, XLR (1200 mW + 1200 mW into 100 Ω)
• 12 V trigger (out)

Technical Data

• THD: 0.01 % or less (1 kHz, LPF 20 Hz to 20 kHz)
• Signal-to-noise ratio: 105 dB
• Frequency response: 5–70,000 Hz
• Channels: 2
• Power supply: 220–240 V, 50 Hz, 0.4–18 W
• Dimensions (H × W × D): 8.5 × 29 × 24.9 cm
• Weight: 4.9 kg

Included Accessories

• Power cable
• Remote control RC-1334
• 2 × AAA batteries for the remote control
• 3 × foot pads
• Owner's manual (with warranty)
