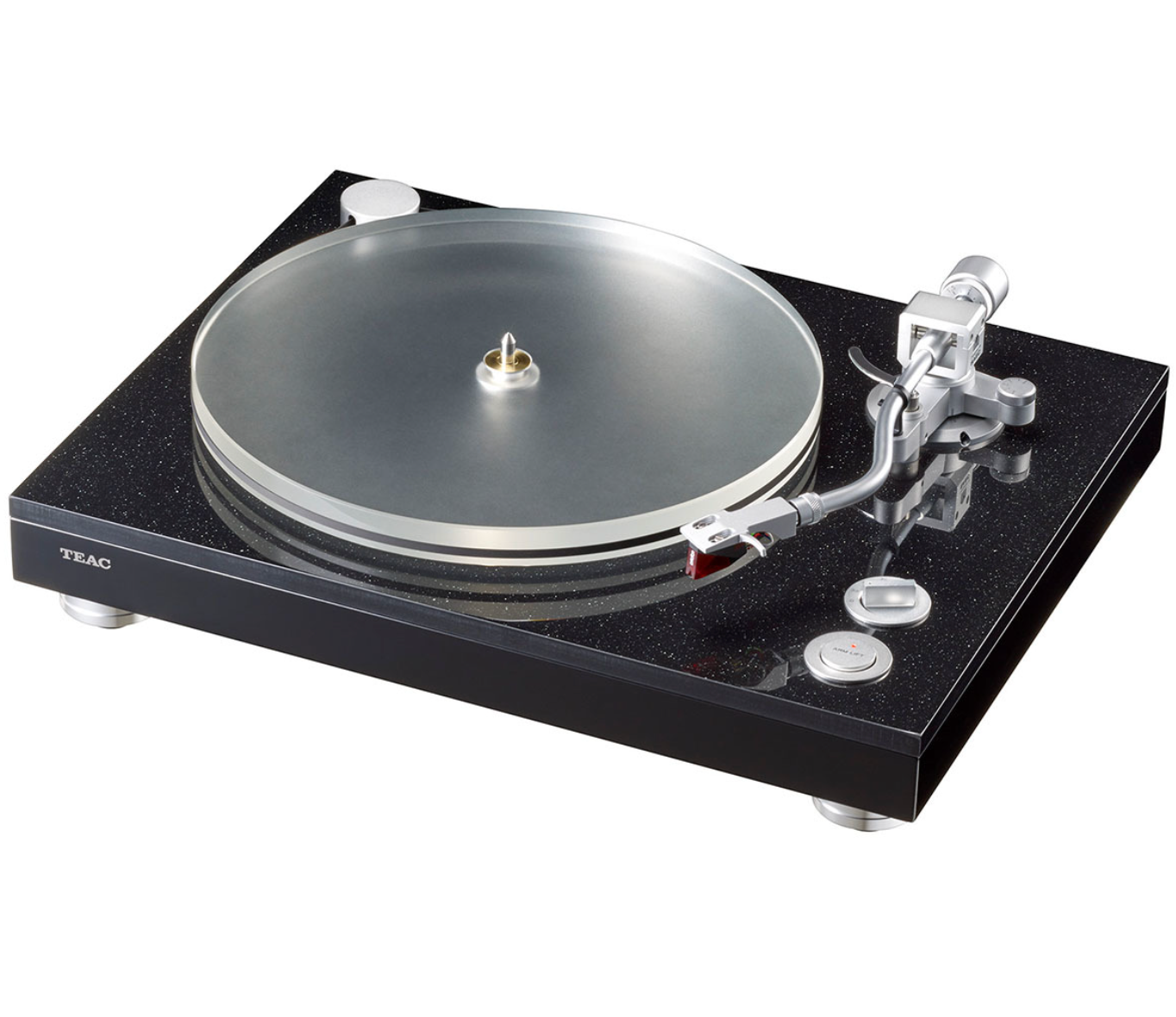

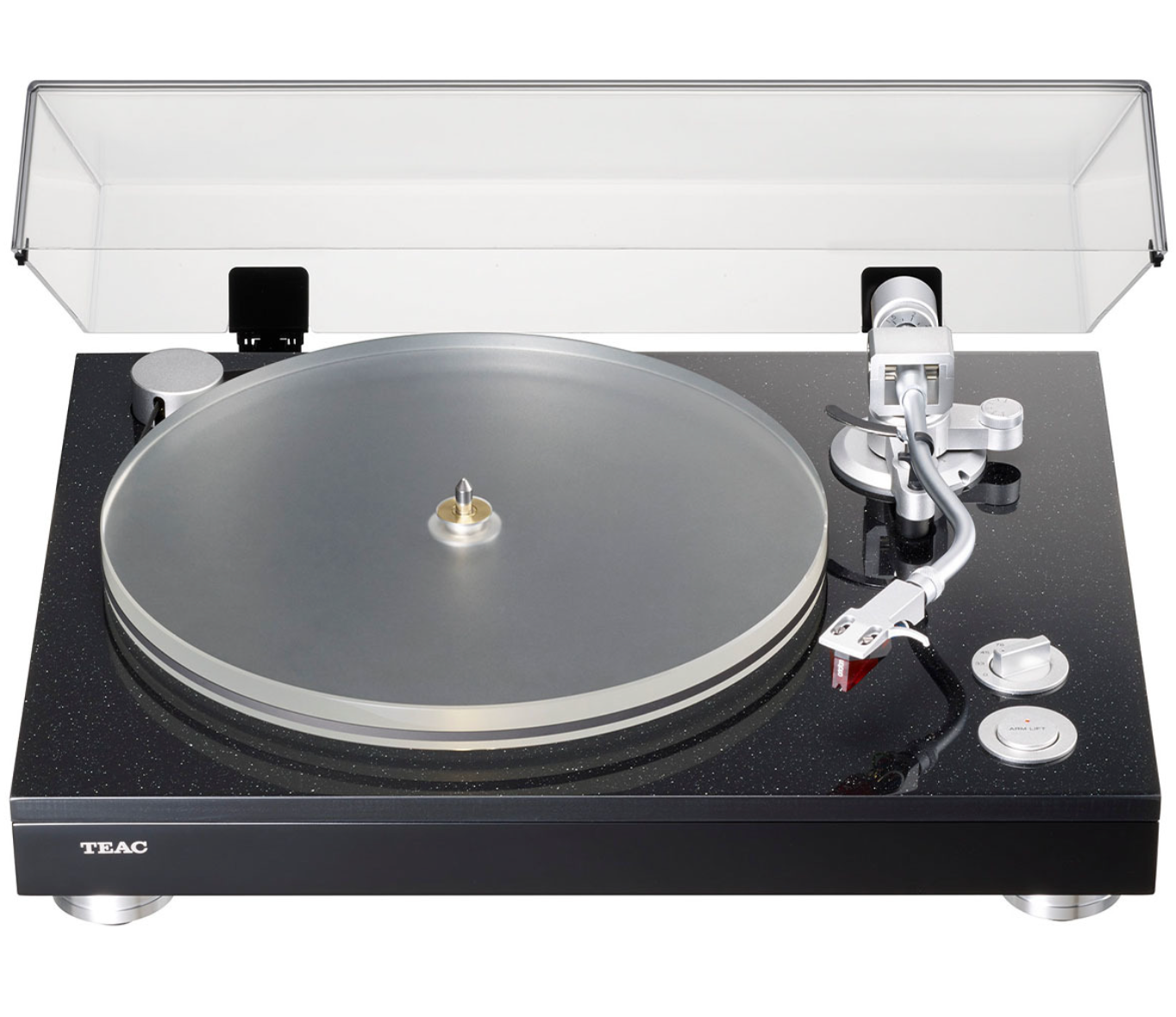

Teac TN-5BB-M/B Turntable

Teac TN-5BB-M/B Turntable

The Teac TN-5BB-M/B is a semi-automatic belt-drive turntable with a SAEC tonearm and a factory-mounted Ortofon 2M Red cartridge.

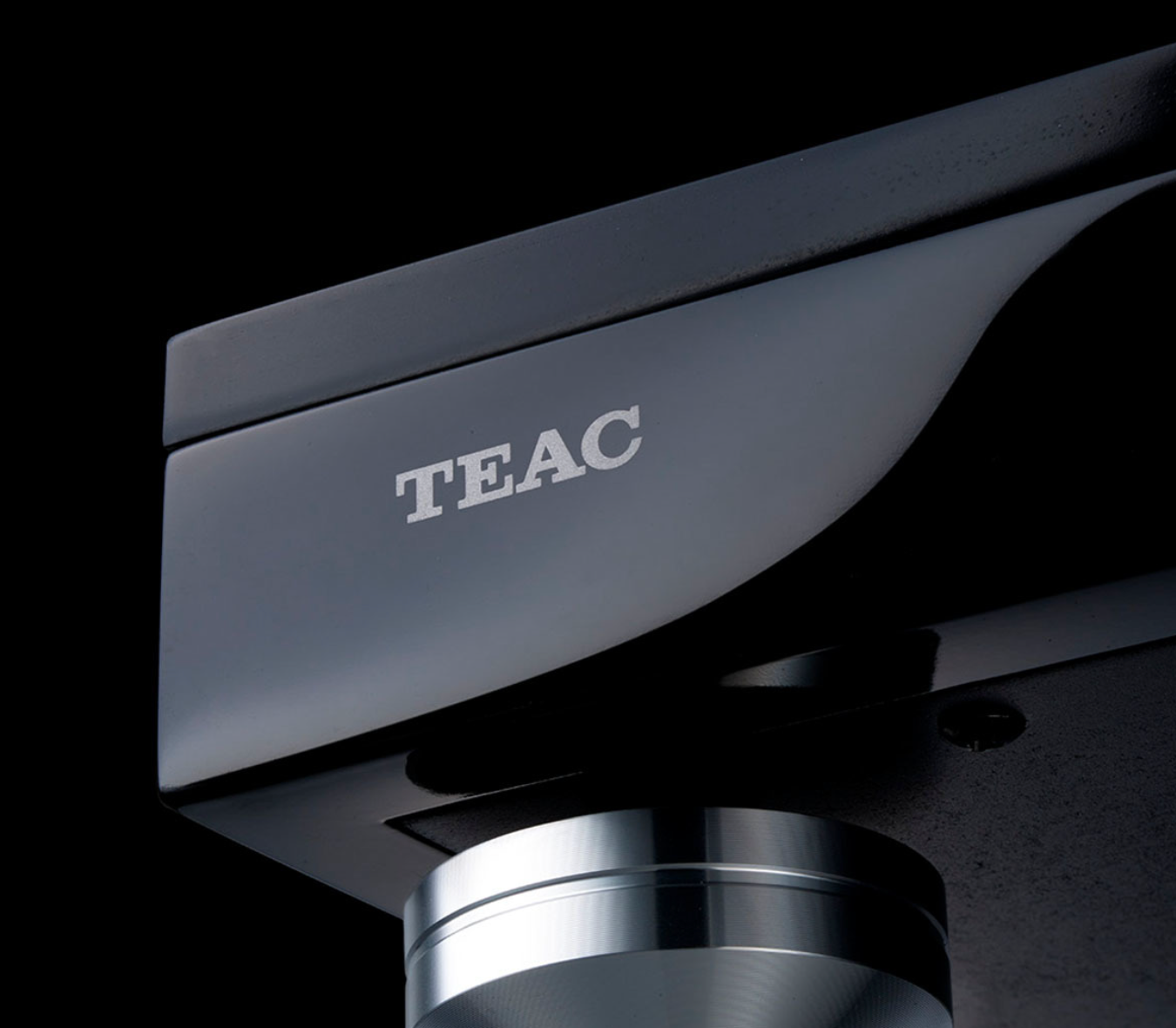

Housing

The housing has a multi-layer construction: a 36 mm MDF base plate and a 12 mm plate of synthetic marble. The housing weighs 8.8 kg. The tonearm and platter are mounted on the synthetic marble top plate, while the motor sits on the MDF base plate. These separate structures isolate the tonearm and motor from each other and reduce the transfer of vibrations. Japanese washi paper is used as a spacer between the synthetic marble and the MDF.

Drive

The TN-5BB uses a flat belt that transfers the force of the DC motor to the outer edge of the platter. An optical sensor on the underside of the platter detects the rotation speed; a servo mechanism adjusts the motor accordingly. This Platter Rotation Sensing Servo System (PRS3) provides high rotational accuracy.

• Speeds: 33 ⅓, 45 and 78 rpm
• Wow & flutter: ≤ 0.1 %

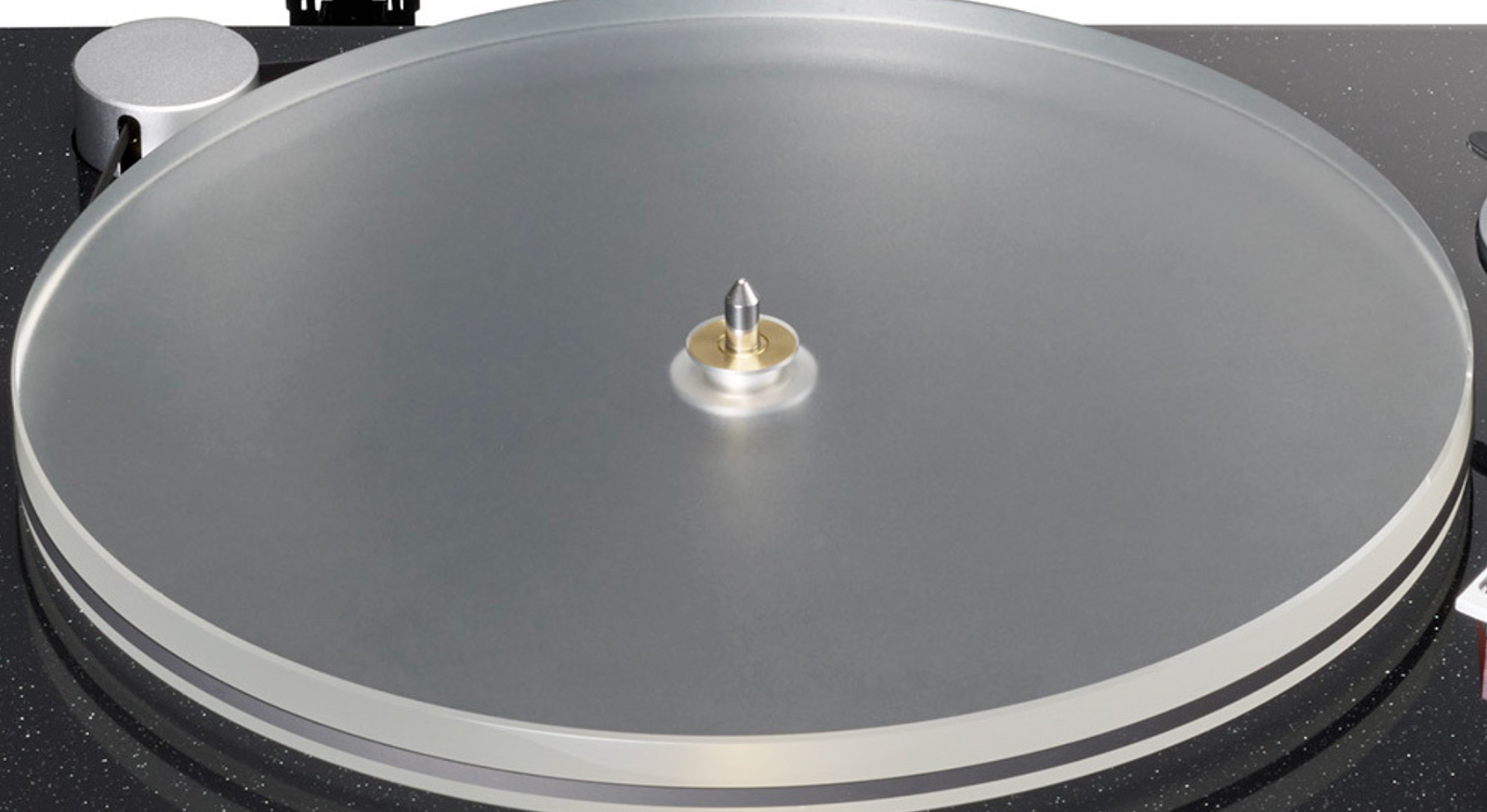

Platter

The platter is made of 20 mm acrylic with a diameter of 30 cm and a weight of 1.7 kg. Acrylic and the polyvinyl material of records sit close together in the triboelectric series, which makes electrostatic charging less likely on direct contact. Records can be placed directly on the platter without a mat.

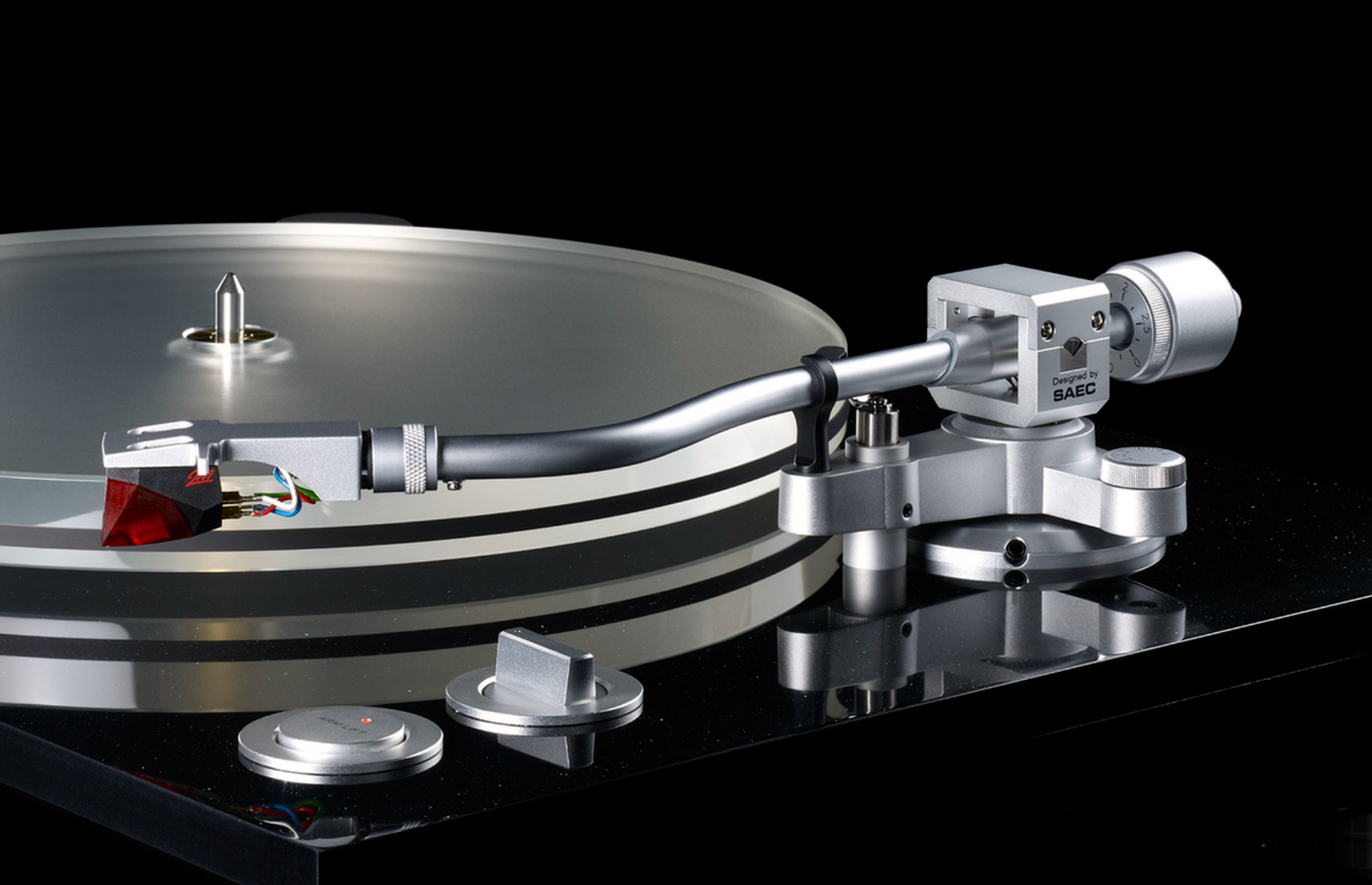

Tonearm

The knife-edge tonearm was developed in cooperation with SAEC. The vertically moving section uses a stainless steel knife edge, while the laterally moving section rests on Japanese ball bearings at two points. The height of the tonearm base is adjustable; the Vertical Tracking Angle (VTA) can be set within a range of 6 mm. The tonearm geometry follows the IEC-recommended Baerwald alignment. The internal wiring uses a cable with a PC-Triple-C conductor from SAEC.

• Effective tonearm length: 223 mm
• Cartridge overhang: 18 mm
• Anti-skating: present

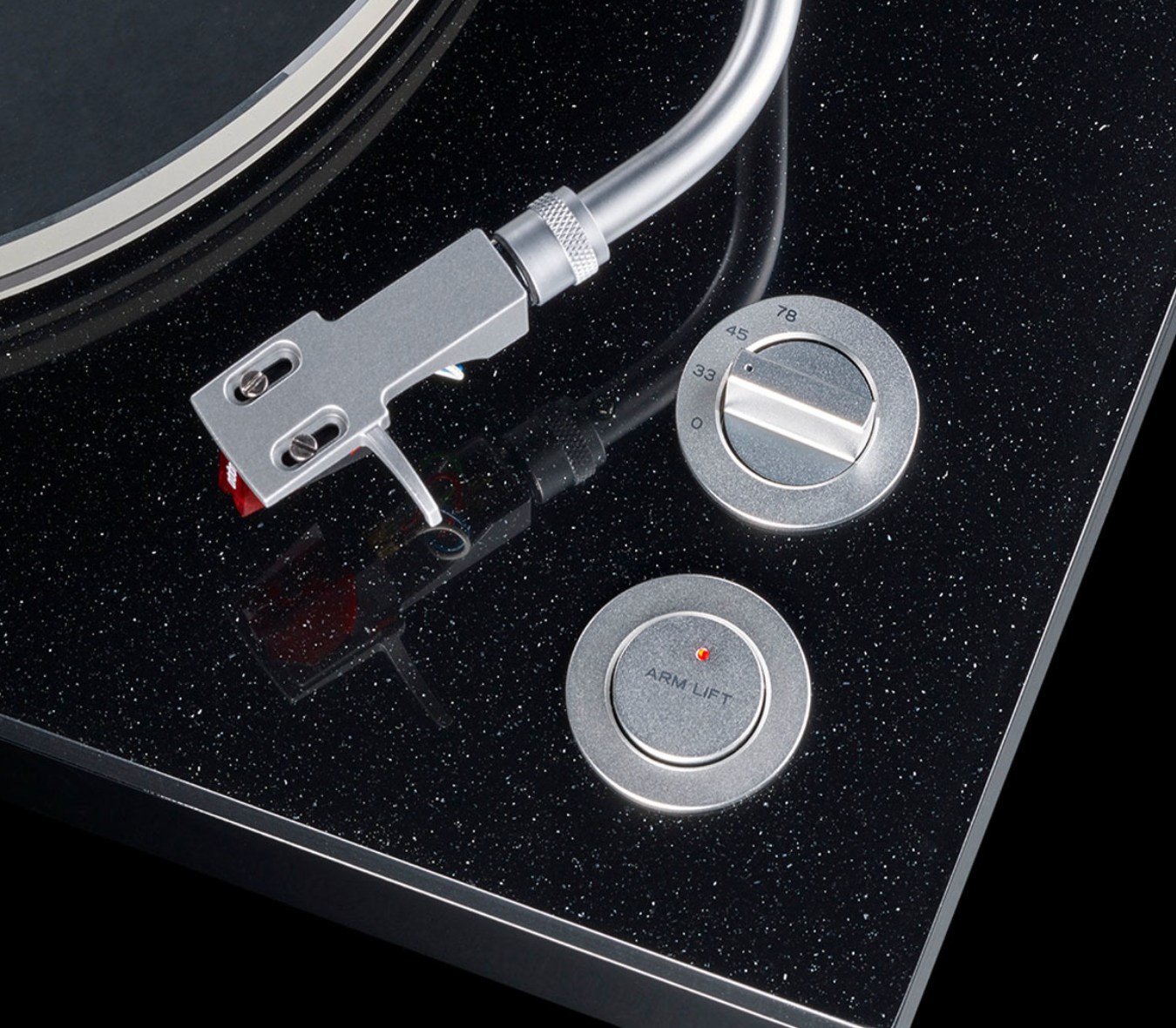

Arm Lifter

A motorised arm lifter raises and lowers the arm at the press of a button. After playback ends, a contactless optical sensor lifts the arm automatically. This function can be switched off for non-standard records.

Cartridge

An Ortofon 2M Red MM cartridge is included, already installed and aligned to the headshell.

• Cartridge type: MM
• Output: 5.5 mV (1 kHz, 5 cm/s)
• Tracking force: 1.8 g
• Cartridge weight: 7.2 g (with headshell 10 g)
• Recommended cartridge weight: 4–13 g (incl. headshell 14–23 g)

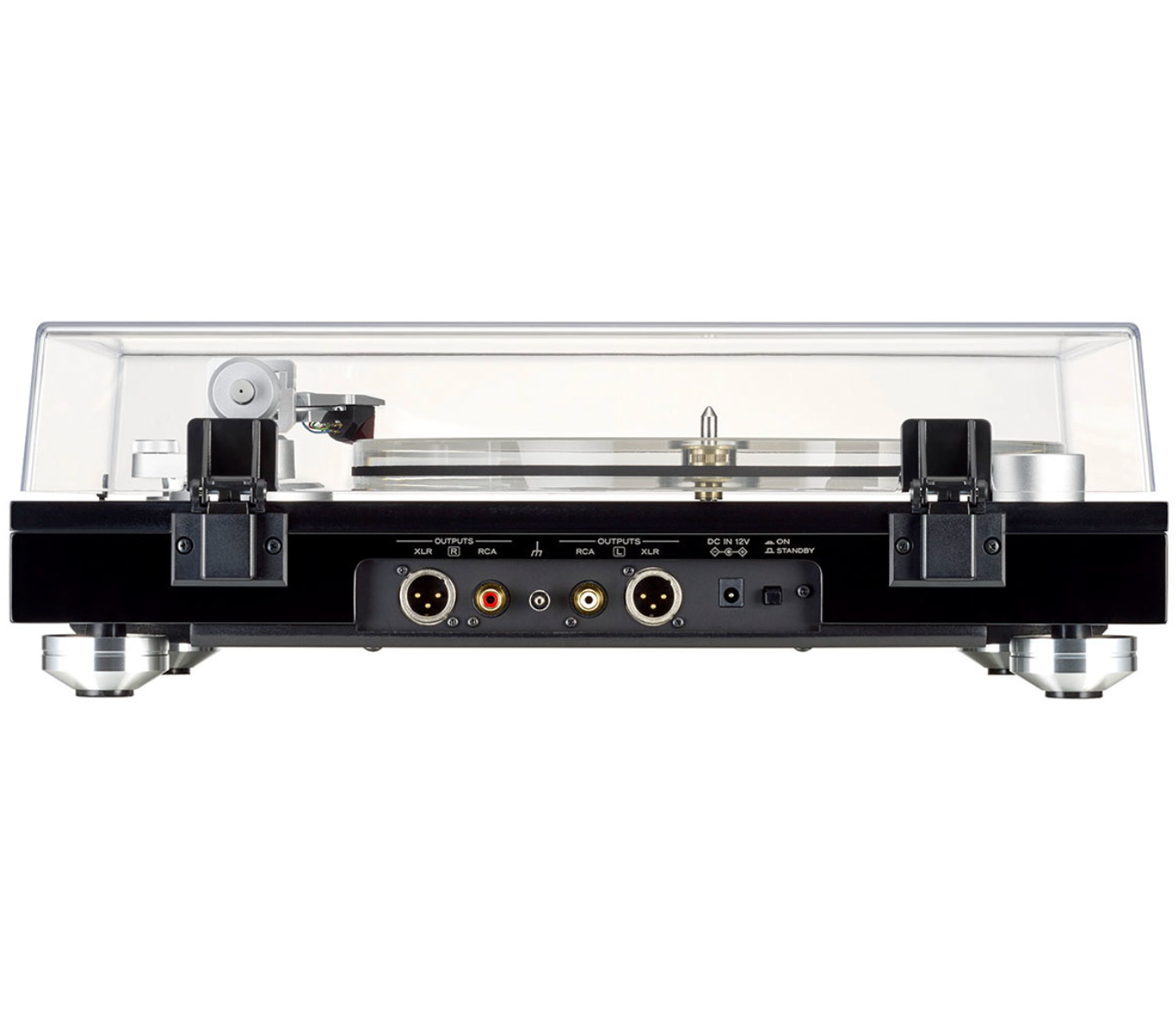

Connections

The analog output offers both RCA and XLR sockets. The XLR output is designed for balanced MC transmission and can be connected to external phono stages such as the PE-505.

Technical Data

• Type: semi-automatic
• Drive: belt drive
• Built-in preamplifier: no
• Power consumption: 2 W (standby 0.3 W)
• Weight: 14.0 kg

Scope of Delivery

• Turntable with platter
• Headshell with installed Ortofon 2M Red
• Counterweight
• 45 rpm adapter
• Flat belt
• Pulley cover
• Dust cover
• 2 hinges
• 4 washers for foot height adjustment
• Allen key for arm height adjustment
• RCA audio cable
• Grounding cable
• AC adapter (GPE018S-120100-Z)
• Cartridge alignment gauge
• User manual
