Teac PD-507T CD Transport

Teac PD-507T CD Transport

The Teac PD-507T is a CD transport with an in-house drive mechanism and selectable digital outputs. It can be connected to an external clock via a 10 MHz input.

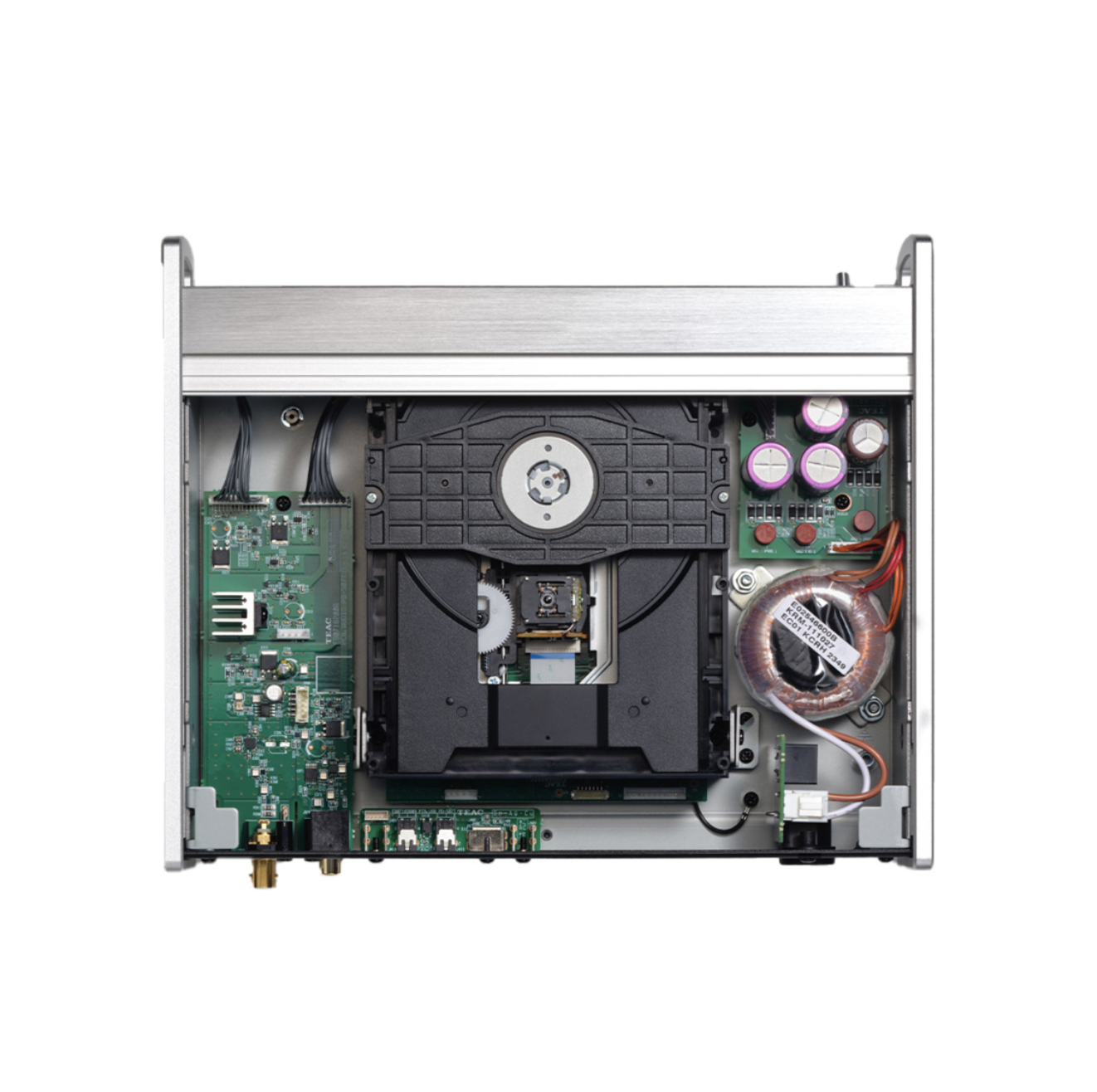

Drive and Mechanics

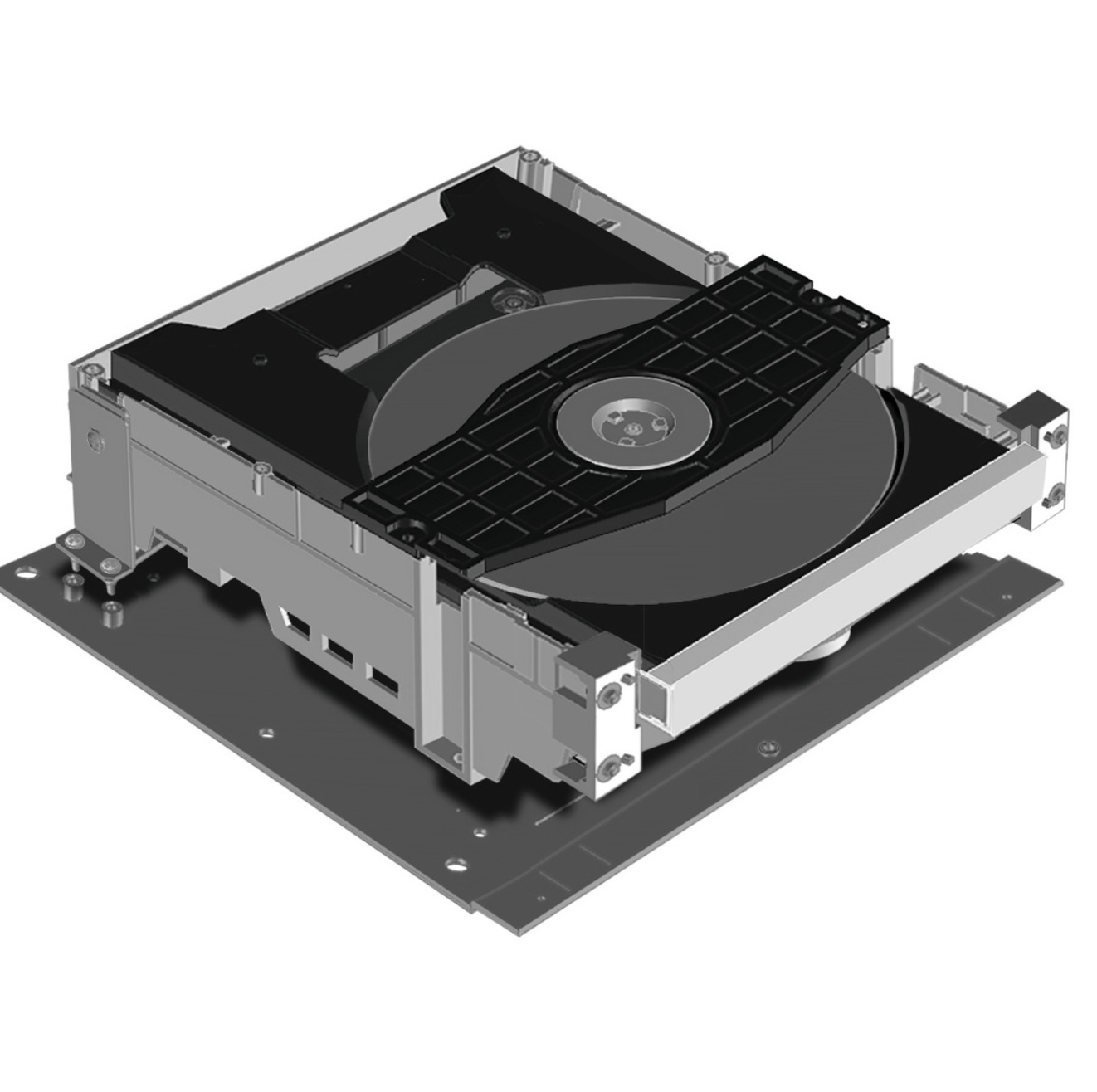

• CD transport mechanism based on the Teac-developed CD-5020A
• Semi-floating mounting of the drive to the main chassis for vibration control
• Fixed mounting of individual drive components without dampers
• Semi-floating aluminium top panel, fixed without screws via precision slots in the side panels
• Full metal housing with 8 mm aluminium side panels
• 3-point support system with Stress-Less isolation feet made of steel

Circuitry and Power Supply

• Discrete power supply with toroidal transformer, triple secondary winding and triple rectifier circuit
• Separate supply for the audio circuit, CD drive, and microcomputer and display
• Separate power supply for the clock and the digital output
• Spindle and pickup lens drive via BTL circuit
• Quartz oscillator with low phase noise for the internal clock

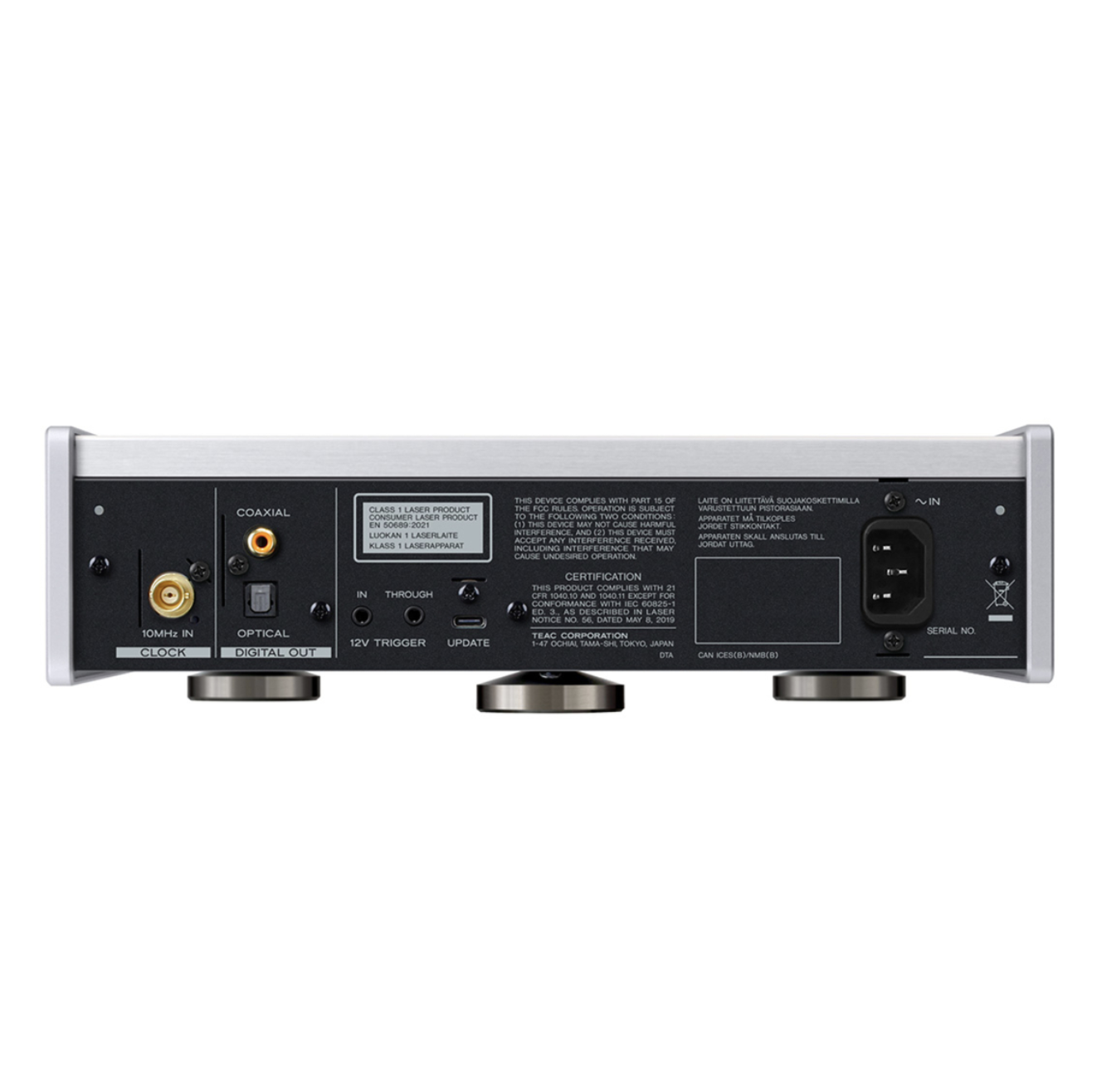

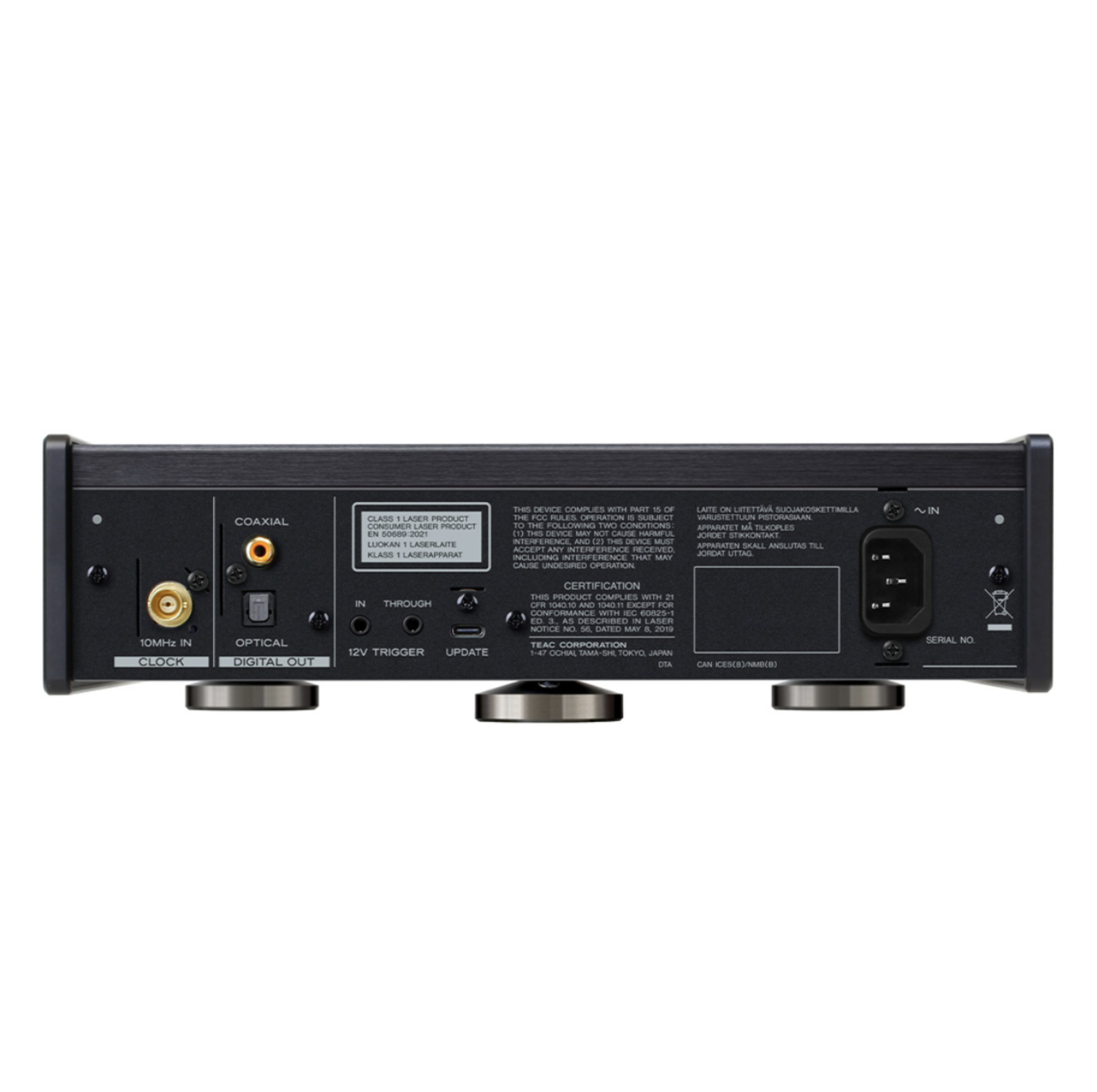

Connections and Outputs

• Selectable digital output: coaxial or optical; unused output circuits are deactivated
• Coaxial output: 1, 0.5 Vp-p, 75 Ω
• Optical/Toslink: 1
• BNC input for external 10 MHz clock: 50 Ω; rectangle wave (TTL level), sine wave 0.5 to 1.0 Vrms
• Connection to the CG-10M-X master clock generator possible
• 12 V trigger input and pass-through for system control
• IEC power connector

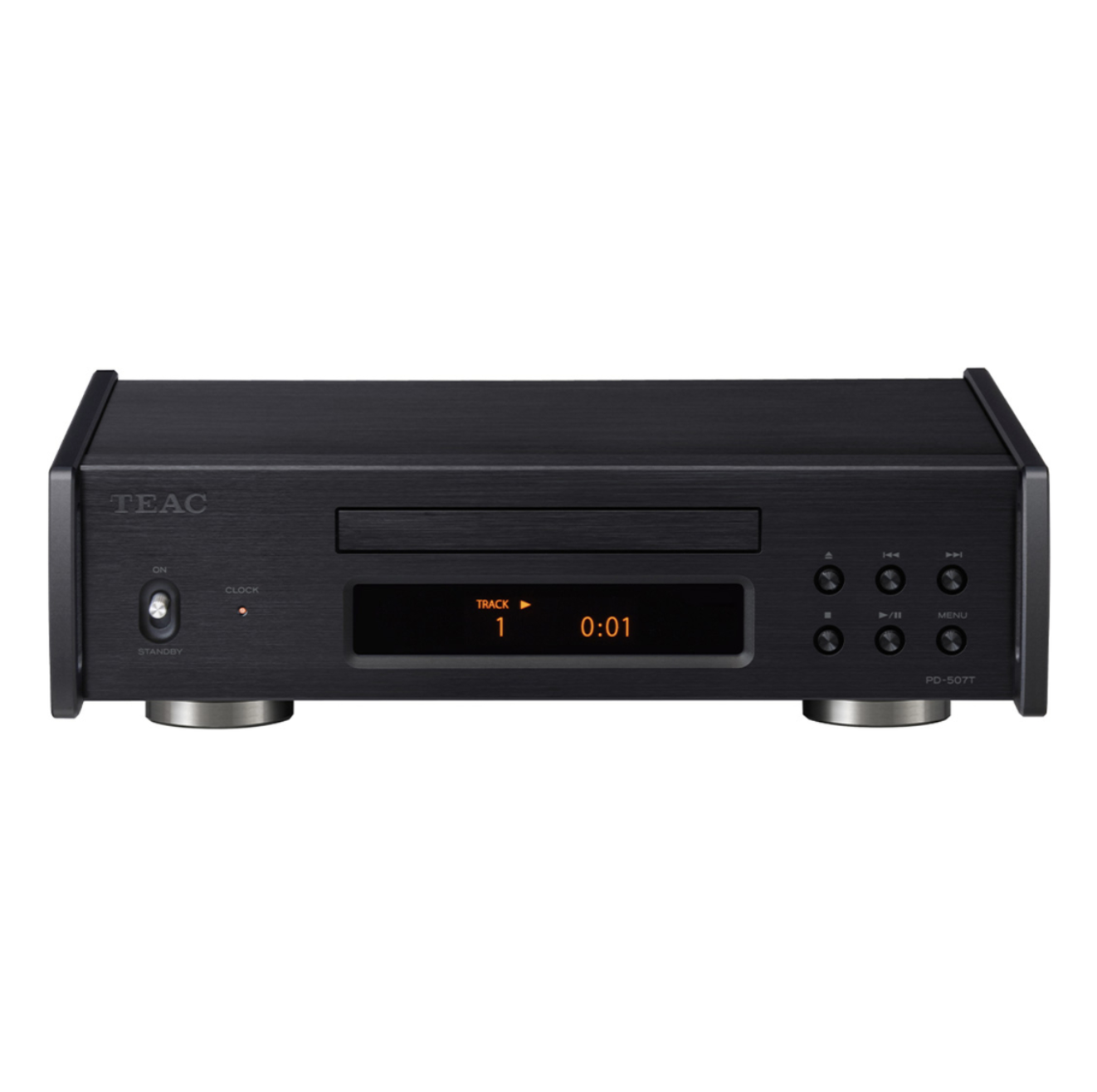

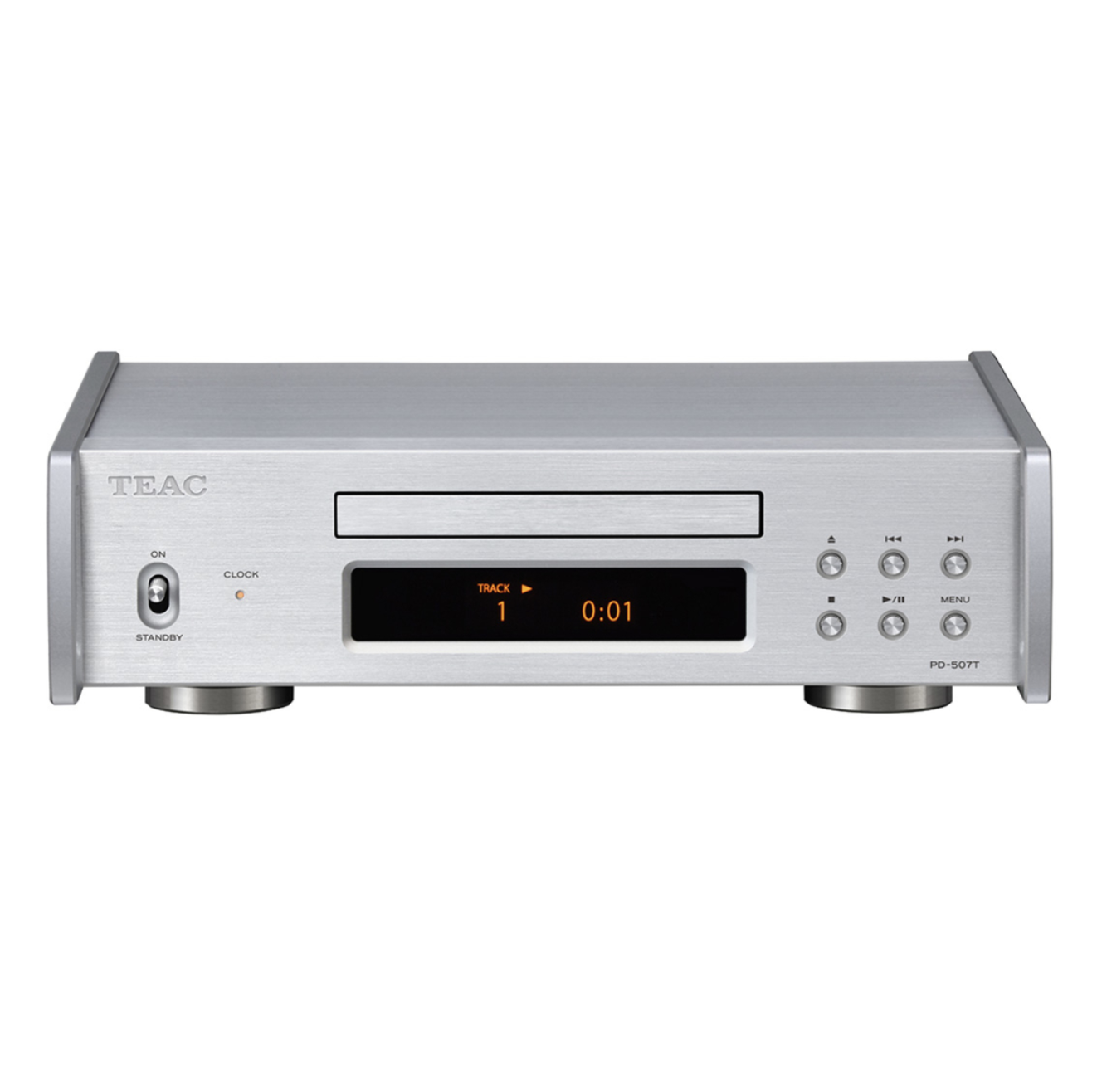

Operation and Display

• Amber OLED full-dot display
• Dimmer function
• Playback modes: normal playback, repeat (track/album), random playback, program playback
• Power-on-play function
• Display of elapsed time, remaining track time and remaining total time
• Automatic power-saving function

Technical Data

• Power consumption: 0.3–4 W
• Dimensions (H × W × D): 8.4 × 29 × 24.9 cm
• Weight: 4 kg
• Colour options: silver, black

Scope of Delivery

• Power cable

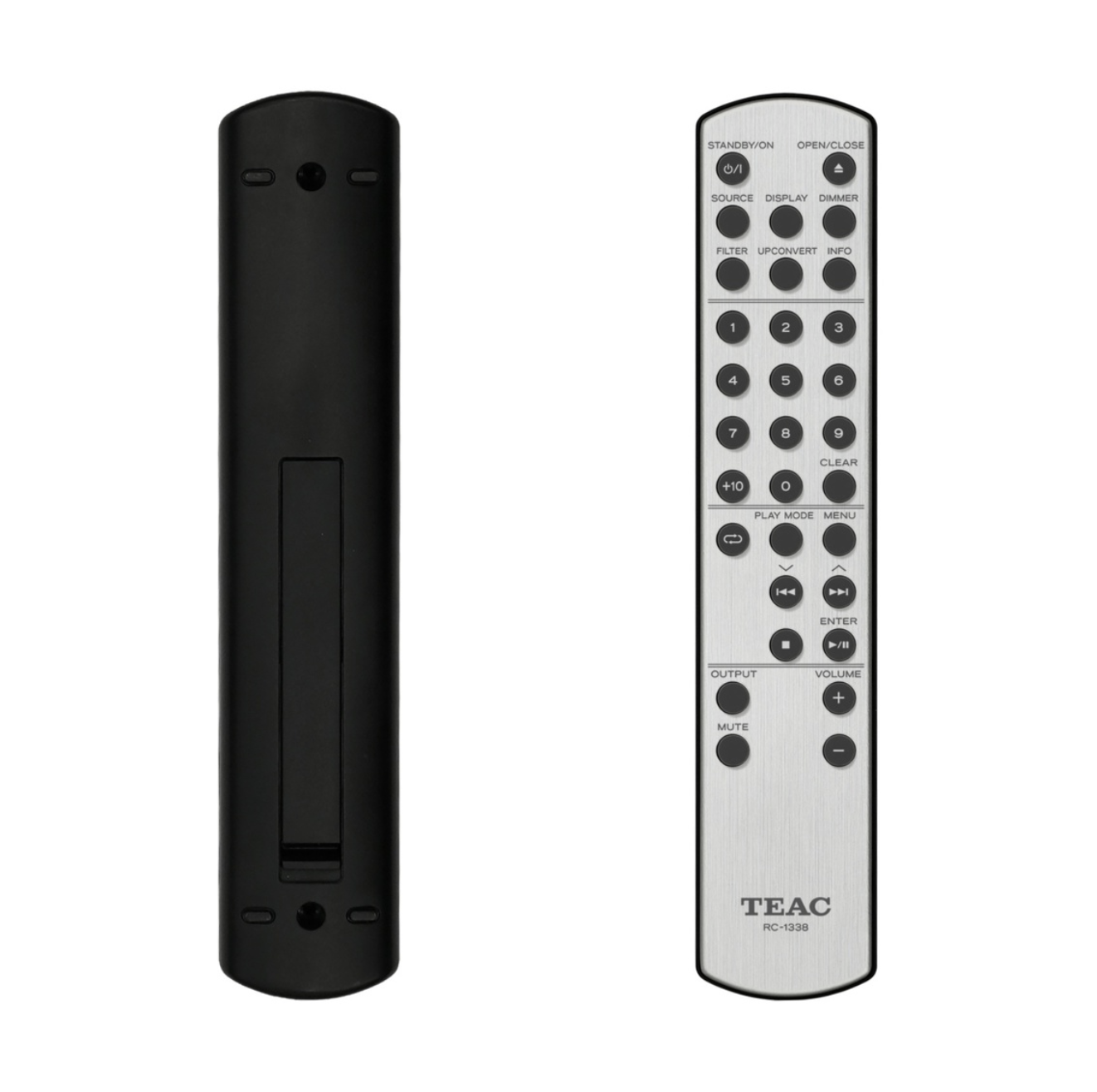

• Remote control RC-1338
• 2 AAA batteries
• 3 foot pads
• Owner's manual
