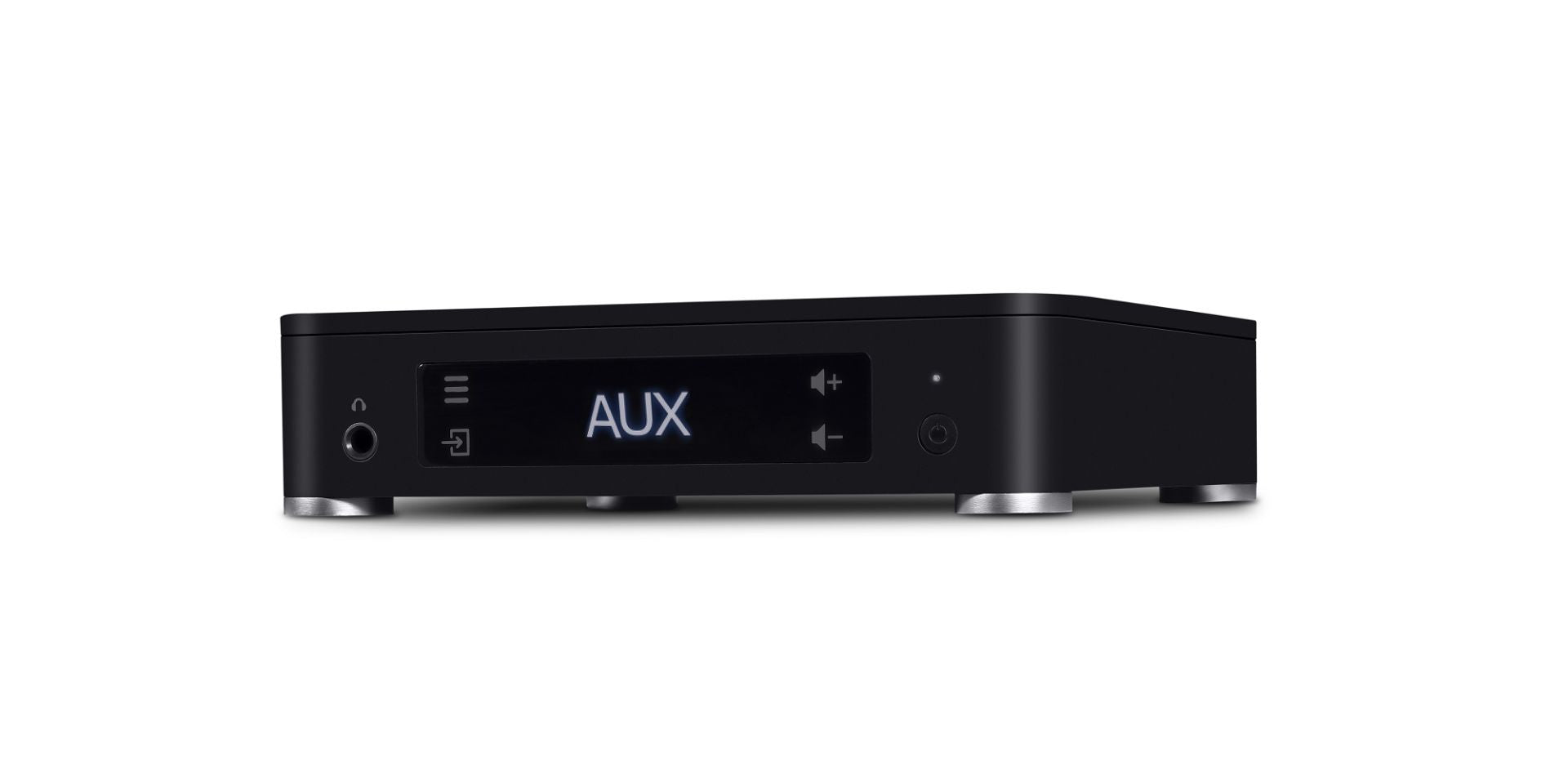

xMission LX Connect DAC – High-Performance Digital-to-Analog Converter for Audiophile Demands
The Mission LX Connect DAC is a standalone digital-to-analog converter, preamplifier, and headphone amplifier derived from the award-winning wireless speaker system Mission LX Connect. It combines innovative design with class-leading performance and cutting-edge audio technology to elevate your listening experience.
Versatile Connectivity for All Your Audio Sources
Acting as the central hub for all your music sources, the LX Connect DAC features analog, optical, and coaxial digital inputs. It also includes an HDMI ARC connection for high-quality audio when used with TVs, movies, and games. The built-in Bluetooth aptX receiver enables wireless streaming of high-resolution audio from smartphones and tablets. Control is easy via the responsive touch display or the included remote control.
High-End DAC Powered by Audiolab Expertise
Drawing on the expertise of its sister company Audiolab, the LX Connect DAC is equipped with the ES9018K2M DAC chip from the Sabre32 Reference family. This ensures ultra-low noise performance and an expansive dynamic range, supported by ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.
Integrated Headphone Amplifier for Dynamic Sound
The built-in headphone amplifier, based on Audiolab design, uses a current-feedback circuit with exceptional gain bandwidth and high slew rate. The result is dynamic, detailed performance with all types of headphones.
Support for High-Resolution Audio Formats
The LX Connect DAC supports high-resolution PCM playback up to 32-bit/384 kHz via USB and 24-bit/192 kHz through coaxial and optical inputs. It also supports DSD playback (up to DSD256) via USB, providing flexible, high-quality digital audio reproduction.
Specifications
D/A Converter: ES9018K2M DAC chip, Sabre32 Reference family
Analog input: RCA (AUX)
Digital inputs: Optical (OPT), Coaxial (COAX), PC USB, Bluetooth, AV Audio
Analog output: RCA Pre-Out
Sampling rates:
– 24-bit / 192 kHz (OPT, COAX)
– 32-bit / 384 kHz (USB, PCM)
– 2.8M (DSD64), 5.6M (DSD128), 11.2M (DSD256) via USB
Digital filters: Fast roll-off, Slow roll-off, Minimum phase
Frequency response: 20 Hz – 20 kHz (±0.3 dB)
Signal-to-noise ratio (SNR): >100 dB (AUX IN, A-weighted); >110 dB (digital inputs, A-weighted)
Total harmonic distortion (THD): <0.001% (digital); <0.005% (analog)
Dimensions (H × W × D): 55 × 225 × 231 mm
Weight: 1.75 kg
Finish: Black
Processing Time
1–3 business days
14-Day Return Policy
In the event of transport damage, Audio Everywhere covers the return shipping costs.
Warranty and Manufacturer Guarantee
Audio Everywhere offers a 2-year statutory warranty on all new products in accordance with EU consumer protection laws. Additionally, a 2-year manufacturer warranty is provided, which can be handled through us as an authorized dealer. Registering the product on the manufacturer’s website may extend the warranty depending on the provider.
