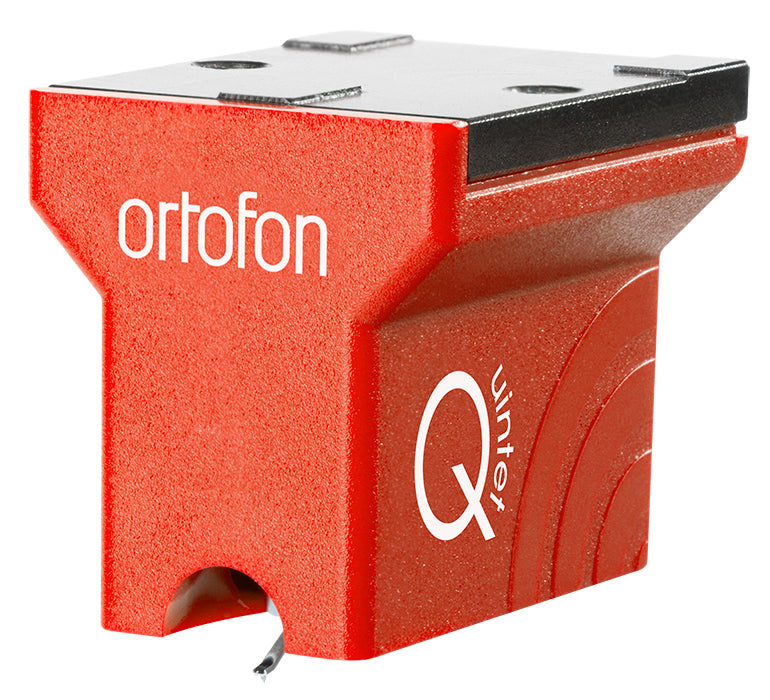

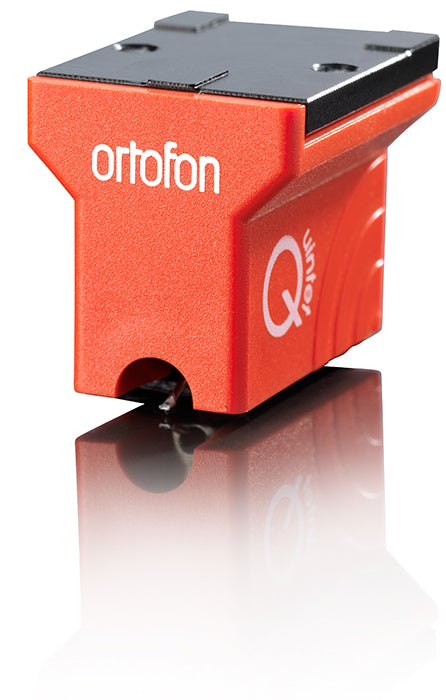

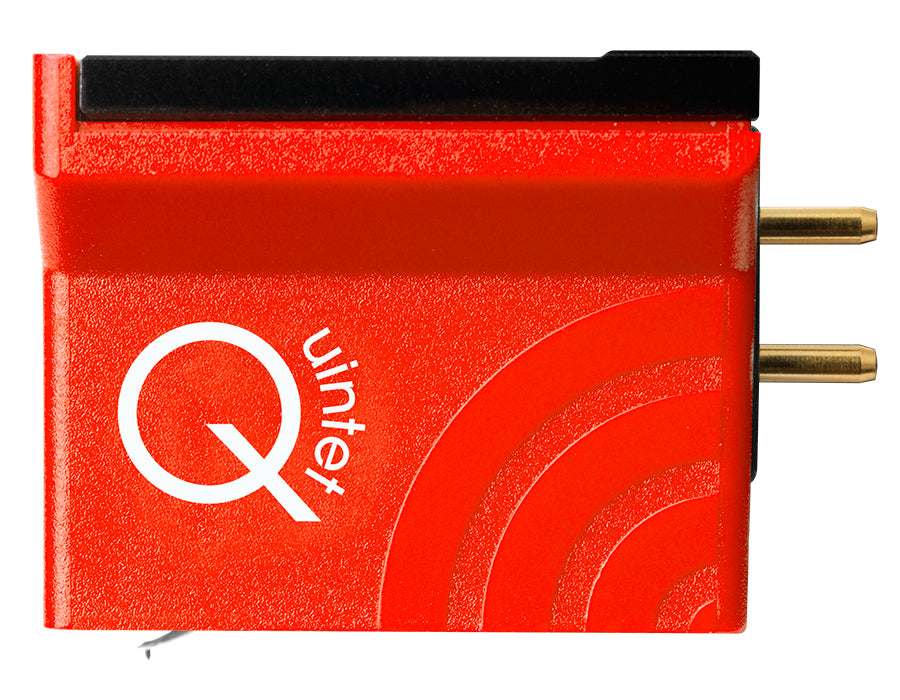

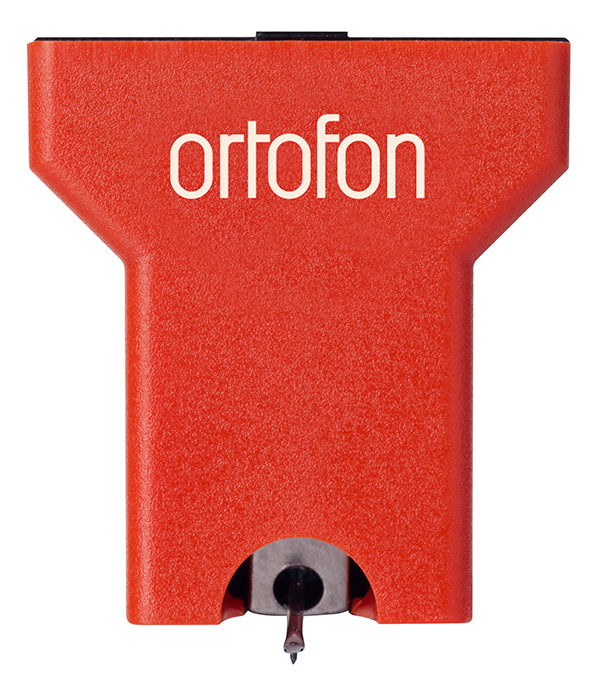

Ortofon MC Quintet Red Cartridge

Ortofon MC Quintet Red Cartridge

The Ortofon MC Quintet Red is a moving coil cartridge with an elliptical diamond stylus. It is designed as an entry point into Ortofon's moving coil cartridges and intended as an all-rounder.

• Type: Moving Coil (MC)
• Stylus type: elliptical
• Stylus tip radius: r/R 8/18 µm
• Body material: PC thermoplastic
• Magnets: neodymium
• Colour: red
• Weight: 9 g

Specifications

• Output voltage at 1 kHz, 5 cm/s: 0.5 mV
• Channel balance at 1 kHz: < 1.5 dB
• Channel separation at 1 kHz: > 21 dB
• Frequency response 20 Hz - 20 kHz: +/- 2.5 dB
• Tracking ability at 315 Hz: 65 µm
• Compliance (dynamic, lateral): 15 µm/mN
• Tracking force range: 2.1-2.5 g
• Recommended tracking force: 2.3 g
• Tracking angle: 20°
• Internal impedance, DC resistance: 7 Ohm
• Recommended load impedance: > 20 Ohm

The low internal impedance makes the cartridge less sensitive to load impedance and allows use with a wide range of preamplifiers and transformers. Mounting is done via the aluminium frame with threaded holes; depending on the headshell thickness, 5 mm or 7 mm screws are used. The matching screws are supplied.
